Array formulas and Excel’s
“Evaluate Formula” capability
Even before exploring the first array formula, it will help
to know how Excel’s Evaluate Formula capability interacts with an array
formula. For those who don’t know about
this capability of Excel, it is an incredibly powerful feature that, frankly,
is not well known. Accessed via Tools | Formula Auditing ► Evaluate
Formula (or via the Evaluate Formula button
on the Formula Auditing toolbar), it lets one
understand how Excel will evaluate a formula.
And, best of all, it is array-aware.
When evaluating an array formula, it will correctly interpret the array
components. It is probably easiest to
understand this Excel feature with an example.
Suppose that in some table, column D contains the heights of students
and Column E contains their respective weights.
Consider the following array formula that sums the weights of all those
who are taller than 6 feet (i.e., 72 inches).
At this point, don’t worry about how the formula came into being. Just concentrate on how it is evaluated.
=SUM(('multi criteria
table'!D2:D19>72)*('multi criteria table'!E2:E19))

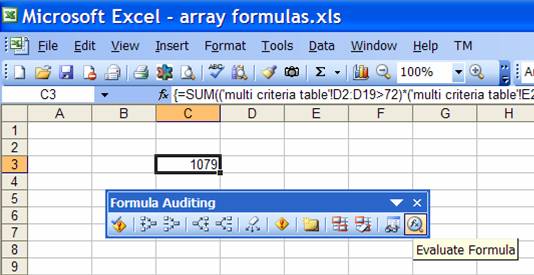

To start the process, click the Evaluate Formula button on
the Formula Auditing toolbar (see Figure
1).
Figure
1

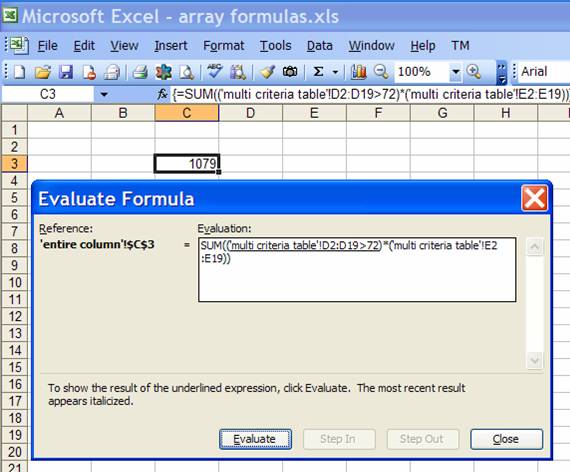

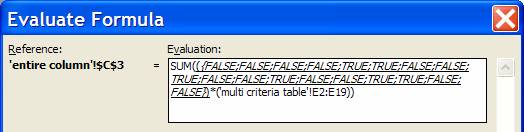

This brings up the Evaluate
Formula dialog box. It shows
which cell is being evaluated and the formula in the cell. As indicated in the dialog box, the
underlined expression will be evaluated next.
See Figure 2.
Figure
2
Click the Evaluate button to
have Excel evaluate the first expression.
Since this is an array formula, it generates an 18 element array of TRUE
or FALSE values – the results from checking whether each cell in the range
D2:D19 is greater than 72. See Figure 3.
Figure
3

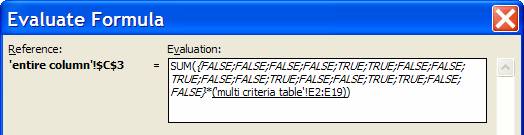

Click the Evaluate button to have Excel move on to the next
expression (Figure 4) and click it again to have Excel include the values
in the cells E2:E19 as an array (Figure
5).
Figure
4
Figure
5

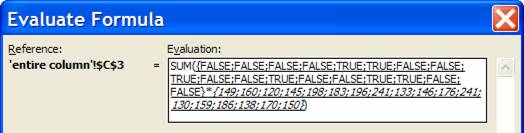

The next click of the Evaluate button will cause Excel to
multiply each element of the first array (the 18 TRUE or FALSE values) with the
corresponding element of the 2nd array. Since multiplication requires two numbers,
Excel will “coerce” the Booleans into numbers using the rule that a FALSE is
the same as zero and a TRUE the same as a 1.
Once it does that it can then multiply the two 18 element arrays to produce
a single 18 element array as in Figure
6.
Figure
6

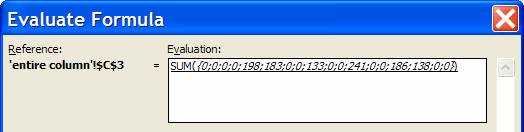

The final step is to carry out the SUM function and the next
click of the Evaluate function does just that as in Figure 7. Once done,
click the Close button to exit the Evaluate Formula
dialog box.
Figure
7
In reading the rest of this chapter remember one can always
use the Evaluate Formula capability to figure out how Excel evaluates a
particular formula.
A function that returns a range of results
The simplest kind of an array formula is the kind needed to
deal with a function that returns a range of different results. For example, the LINEST function returns the
regression coefficients of multiple variables and optionally includes a host of
other statistical data. The only way to
see all these results is to use LINEST as an array formula.
An array formula to
enforce design consistency
This form of an array formula is something I have not seen
outside of my own use. Consider a list of
numbers in some column (say in cells H3:H31).
We want to perform the same calculation on all those numbers, say
increase them by a percentage value given in I1. One way to do this is to enter, in I3, the
formula =H3*(1+$I$1) and copy I3 all the way down to I31. But, this leaves the design vulnerable to a
potential error. Someone might change the
formula in I3 or any of the other cells in I3:I31 but not duplicate the change
in the other cells. Or someone might insert
a row…or delete a row…or…you get the idea.
A way to enforce consistency is to select I3:I31 and enter
the array formula =H3:H31*(1+$I$1). The
way Excel interprets this formula is contextual to each cell in which it is
evaluated. In the context of I3, Excel
interprets it as H3*(1+$I$1). In the
context of I4, it interprets it as H4*(1+$I$1).
Hence, functionally, it achieves the desired goal.
The advantage of this array formula is that Excel doesn’t
allow one to edit a single cell that is part of an array formula. One must edit all cells at the same
time! Consequently, none of the
maintenance errors identified earlier in this section are possible. A positive side effect is that Excel operates
on all the cells as a single “chunk” whereas in the case of 29 non-array
formulas, Excel calculates each individually.
A function that returns
multiple values of a single type
This type of an array formula is a twist on the previous
type. Imagine one wants to generate a
hundred random numbers between a lower value specified in B1 and an upper value
specified in B2. The numbers are to go
in B4:B103. One way to do this is to
enter the formula =INT(RAND()*($B$2-$B$1+1)+$B$1)
in B4 and copy the formula all the way to B103.
This will result in 100 calls to the RAND() function
whenever Excel recalculates the worksheet and the design remains vulnerable to
the kind of issues discussed in the previous section.
It turns out that both INT() and RAND()are what I would call “array aware” functions. If RAND is
entered in multiple cells as an array formula, it returns an array of numbers
equal to the number of cells it is entered into! Effectively, if we select B4:B103 and array
enter the exact same formula as in the single cell case, we get 100 random
numbers with a single call to RAND! And, we get all the design benefits discussed
in the previous section.
Array-aware functions
In the sections above, we have seen some built-in Excel
functions that are array-friendly. However,
that is not true for all functions. For
some that capability is meaningless by design since they always operate on
arrays to return a scalar, i.e., a single result. Falling into this category are several
statistics functions such as MAX, MIN, COUNT, and SUM. In other instances, the functions were just
poorly designed. The most glaring
array-ignorant of Excel functions is the CONCATENATE function. Given a cell range such as I3:I10, it uses I3
and ignores the rest. The
array-ignorance of CONCATENATE has left a glaring hole in Excel’s string
manipulation capabilities. While there is a list of array-aware
functions somewhere in the Microsoft Knowledge Base, it is best for one to ensure
a function is array aware.
A lightning fast
user-defined-function
One of the criticisms of user defined functions written in
VBA is that typically they are slower than an Excel formula, even a very
complex array formula. While that
sweeping generalization is questionable in itself, a properly designed
array-aware UDF can be, to use a cliché, faster than greased lightning. An example is at
http://www.tushar-mehta.com/excel/newsgroups/rand_selection/vba.html#from_worksheet The function takes
values entered in a range of cells and returns a list of random selections. The numbers of values returned depends on the
number of cells in which the function is array-entered.
A function that operates
on multiple input values
There are many functions that are documented as having
arguments that take a single value. Typically,
such a function also returns a single value.
One example that comes to mind is the MATCH function. The first argument, the lookup-value is
documented as being a single value.
Further, the function returns a single value. However, some of these functions (including
MATCH), will correctly handle an array of values in place of the documented
single value argument. Given a range of
lookup values, MATCH returns a similar sized array of values, each return value
corresponding to each input value. An
example should help. Consider a list of
values in A8:A10. We want to check which
of these values are also present in a list in B8:B10. The results are to appear in D8:D10. One way of doing this is to enter, in D8, the
formula =MATCH(A8,$B$8:$B$10,0) and copy it down to
D9:D10. The array alternative is to

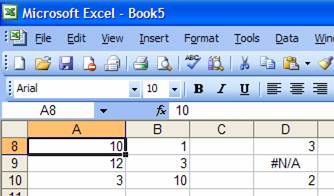

select D8:D10 and array enter the formula =MATCH(A8:A10,B8:B10,0). Note that the lookup-value (the first
argument) is now a multi-cell range. See
Figure 8.
Figure
8
Another instance where this is very useful is using a range (or,
interchangeably, an array) for the appropriate rows or columns argument
of the OFFSET function. For example,
given a list of numbers in column I starting with I3, one can extract the 1st,
4th, and 7th numbers with the formula =N(OFFSET(I3,{0;3;6},0,1,1)).
One can also replace the literal array in the above formula
with one that is generated by the array formula itself. This would be an example of combining two
different types of array formulas and we will see an example later in this
chapter and is very useful in creating a “closed” graph such as shown in
xx. Such a combination of different
types of array formulas plays a pivotal role in creating a custom radar (also called
a spider) chart as shown in yyy.
Nested array functions
Array formulas for statistical
analysis of a subset
This form of an array formula is most often used to carry
out some statistical evaluation of a subset of data organized in a tabular form
as shown in Figure 2 where the subset is generated based on a criterion
involving more than a single column. It
is even more useful when combined with a named formula that identifies a
variable-sized range. Of course, a SQL
query (easily generated through the use of MS Query via Data | Import External
Data > New Database Query…) will provide the same result and, actually, more
that is not even possible with Excel.
Figure

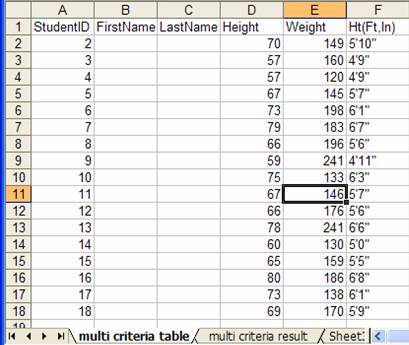

9 – a table containing information
about student heights and weights
For the data above, imagine we want to know the number of
students who are no taller than five feet (i.e., height<=60 inches) and who
weigh at least 150 lb (weight >=150).
While Excel supports database functions (see DSUM, DCOUNT, DAVG, etc. in
Excel help), those functions allow only a single column in the criterion.
Of course, one can just as easily use a SQL query to get the
same results. And, of course, the query
automatically adjusts to include additional rows as they are added to the
table. Assuming the data are in a file
C:\Tushar\Publishing\XL & VBA Case Studies\array formulas, the SQL syntax
to get a count of the number of students would be:
SELECT Count(`'multi criteria table$'`.StudentID) AS 'Count of StudentID'
FROM `C:\Tushar\Publishing\XL
& VBA Case Studies\array formulas`.`'multi
criteria table$'` `'multi criteria table$'`
WHERE (`'multi criteria table$'`.Height<=?)
AND (`'multi criteria table$'`.Weight>=?)
The corresponding MS Query view would be:

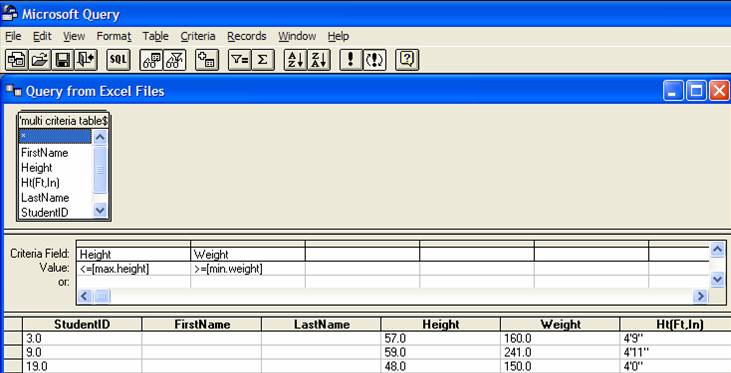

Figure 10
The additional benefit of using SQL is that one can also get
the individual records in the subset, something that is much more difficult
with native Excel formulas. The
necessary SQL and the associated MS Query view are shown below.
SELECT `'multi criteria table$'`.StudentID,
`'multi criteria table$'`.FirstName, `'multi criteria
table$'`.LastName, `'multi criteria table$'`.Height, `'multi criteria table$'`.Weight,
`'multi criteria table$'`.`Ht(Ft,In)`
FROM `C:\Tushar\Publishing\XL
& VBA Case Studies\array formulas`.`'multi
criteria table$'` `'multi criteria table$'`
WHERE (`'multi criteria table$'`.Height<=?)
AND (`'multi criteria table$'`.Weight>=?)

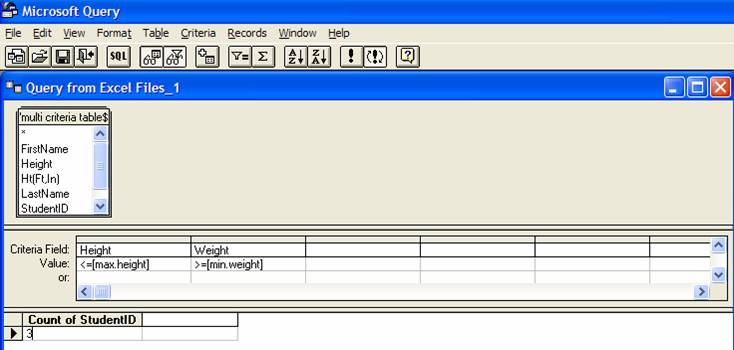

Figure 11
Array formulas and dynamically sized ranges
Array formulas that combine the results of multiple cells
This is probably one of the more common uses of an array
formula. While it can play a beneficial
role in developing a solution, the benefits are not as significant as the
extensive use of the formula might lead one to believe! As I argue in “The Case for Simplicity,” the
routine use of an array formula simply to save space (like one needs to save space when an Excel workbook can have an
unlimited number of worksheets each of which contains about 16.8 million
cells!) is usually unwarranted. The
costs from both the developer’s perspective as well as the business perspective
clearly outweigh the alleged benefits.
Nonetheless, since there are benefits and since this form of an array
formula is extensively used, we should look at it in more detail.
Array formulas and
entire columns (or rows)
The careful reader may have noticed something in the
previous section that seemingly contradicts the earlier part of this
chapter. In the introduction, I noted
that an array formula cannot operate on an entire column (or row). Yet, in the previous section, we had an array
formula that included a reference to an entire column (column A).
=SUM((OFFSET('multi criteria table'!A1,0,3,COUNTA('multi
criteria table'!A:A),1)<='multi criteria
result'!B1)*(OFFSET('multi criteria table'!A1,0,4,COUNTA('multi criteria table'!A:A),1)>='multi criteria result'!B2))
The key to understanding the above is to note that the
function that references the entire column is not array-evaluated. The COUNTA function as used, i.e., COUNTA('multi criteria table'!A:A)
is evaluated in a non-array mode. The
fact that it is included inside an array formula doesn’t change that.
Array formulas that generate a
list of values by themselves
Named formulas that
include array formulas
Conditional formatting
and array formulas
Array formulas that
cannot be duplicated
Named formulas that
include array formulas that cannot be duplicated
Visual Basic: Test for, or
enter, an array formula programmatically
Visual Basic: Array
formulas and the Application’s Evaluate method
