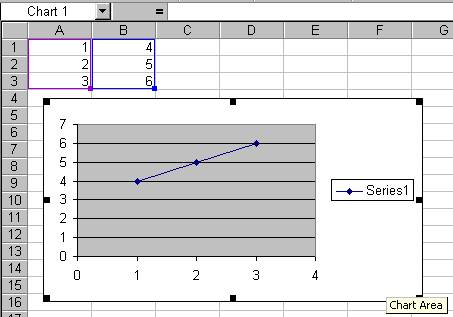

Step 1: Create a chart
The example below uses a
simple XY scatter chart.
[Click on a thumbnail to see
the original image.]
Figure 1
Step 2: Add a title

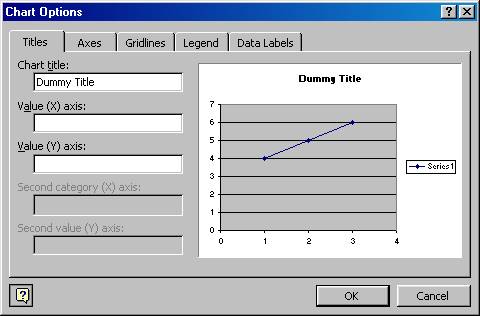

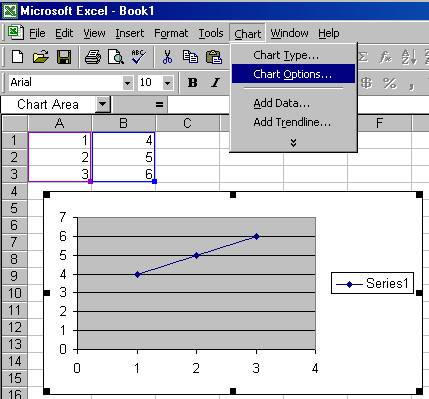

Use chart options to add a
title. This is shown in Figure
2
and Figure
3
. Note that
if you use the chart wizard to create a chart, the title can be
added in one of the wizard�s dialog boxes.
Figure 2
Figure 3
Step 3: Change the title
to a dynamic title.

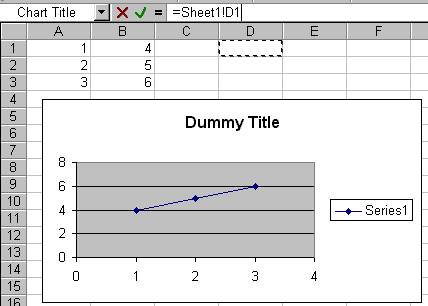

Select the title box as
shown in Figure
4
.
Figure 4
Type the �=� key
(without the quotes) and click on cell that will contain the
formula for the title. In
this example, I use cell D1 (see Figure
5
).
Figure 5
Step 4: Enter the required
formula in cell D1.
In this example, I used
the formula shown in Figure
6
.
Figure 6
Step 5: Enjoy the end
product

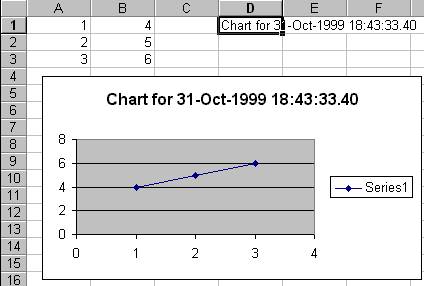

The final result is shown
in Figure 7
.
Figure 7
